Jupyter Lab

For Python (and occasionally for R) programming, we provide a Jupyter Lab interface. Jupyter apps are configured for each course using HUIT Open OnDemand, so as a student or instructor, you'll see a Jupyter app with your course code available in your OnDemand Dashboard.

You'll see the standard options available to other interactive apps, allowing you to set how much time you need for your session and how many CPU cores you need. Some Jupyter apps with special configurations won't give you options for numbers of CPU cores.

Some Jupyter apps are also configured with a toggle between a "Course" environment and a "Global" environment. In most cases you will want to choose the "Course" environment, with the "Global" environment as a fallback. That's because the "Course" environment is managed by course instructors, and will have additional software configured by the teaching staff. The "Global" environment is a fallback environment managed by HUIT with the initial software configuration from the beginning of the term. While it should be stable, it may not include all of the same software as the "Course" environment.

Launching the app

When the Jupyter app is ready for launch, you should be able to get into the Jupyter environment by clicking on the blue "Connect to Jupyter" button that appears when the app is ready to launch.

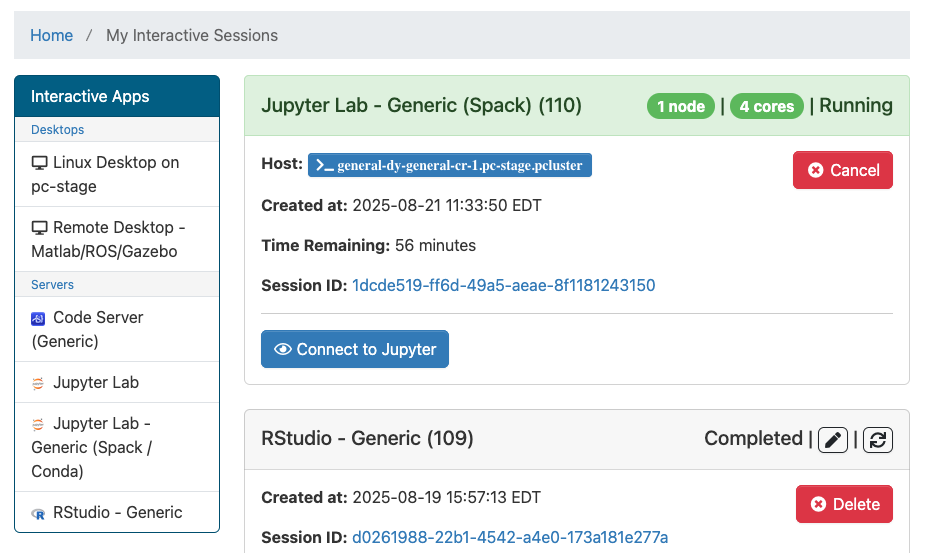

Screenshot showing a Jupyter Lab app card ready to launch in the Open OnDemand interface, with a button that reads "Connect to Jupyter"

If you are presented with a Jupyter login screen after clicking this button, that indicates that there is a problem with the app configuration, and you should contact atg@fas.harvard.edu for support.

Slurm commands from the Jupyter Lab app

The Jupyter Lab app can be set up in different ways, so whether Slurm commands are available will depend on the implementation used in your course. If slurm commands are not available in your Jupyter Lab app, the app description will have a note to that effect.

If Slurm commands are available, they will function slightly differently from how they work in the terminal app through the OnDemand dashboard, since the Jupyter Lab app runs as a slurm job itself. For instance, srun will not automatically create a new job, since it is being run in an existing job context. To create a new Slurm job from within an app running in its own Slurm job, you will need to first allocate compute resources with salloc, or use sbatch instead. It may also be necessary to use --export=ALL when running srun commands from the VS Code terminal. If you find other problematic slurm behavior from the VS Code interface, especially if you have found a workaround, let us know by opening an issue in the repository for this documentation: github.com/Harvard-ATG/huit-ondemand-user-docs/issues
